21ENG ● CONNECTIONSSpeaker ComponentsSUBWOOFER (AH81-04171D)STAND BASE (AH81-03846P)STAND (AH81-03846N)FRONT L (AH81-04171E)R (AH81-03848H)SCREW (Large): 4EA (AH81-03943A)SCREW (Small): 6EA (AH81-03944A)HT-TZ522REAR L (AH81-04171G)R (AH81-03848J)CENTER (AH81-04171F)CRADLE STAND/ WALL MOUNTREAR (AH81-03465A)CENTER (AH81-03469A)REAR (AH81-03852A)CENTER (AH81-03853A)HOLE COVER(L) (R)(L) (R)SUBWOOFER (AH81-03846D)STAND BASE (AH81-03846P)FRONT L (AH81-03846E) R (AH81-03846S)SCREW (Large): 8EA (AH81-03943A)SCREW (Small): 12EA (AH81-03944A)CRADLE STAND/ WALL MOUNTCENTER (AH81-03469A)CENTER (AH81-03853A)HOLE COVER(L) (R) STAND (AH81-03846N)CENTER (AH81-03846F)REAR L (AH81-03846G) R (AH81-03846T)(L) (R)HT-TZ525

22connections Turn the 1. STAND upside-down and connect it to the STAND BASE.Insert three small 2. SCREWS into three holes marked with arrows using a screwdriver as shown in the illustration.Insert a large 3. SCREW into the hole on the rear of the Speaker STAND.Connect the assembled stand to the 4. SPEAKER.Insert another large 5. SCREW into the hole on the rear of the speaker using a screwdriver as shown in the illustration.This is the successfully assembled speaker. 6. Make sure that the speaker is installed on a ﬂat and stable area. Otherwise it may be easily knocked over.1 25 6How to Install the Speaker on the Stand (HT-TZ522/TZ525 only)STANDBASE3 4STANDSPEAKERSTANDHow to Install the Speaker on the Stand Base (HT-TZ522/TZ525 only)Connect the1. SPEAKER with the STAND BASE.Insert the Large 2. SCREW into the hole on the rear of the speaker using a screwdriver as shown in the illustration.This is the3. SPEAKER successfully assembled with the Stand Base.1 23SPEAKERSTANDBASE

23ENG ● CONNECTIONSConnecting the Front, Center and Subwoofer SpeakersPress down the terminal tab on the back of the speaker. 1. Insert the black wire into the black terminal (–) and the red wire into 2. the red (+) terminal, and then release the tab. Connect the connecting plugs to the back of the Home Theater.3. Make sure the colors of the speaker terminals match the colors of •the connecting plugs.Black Red M If you place a speaker near your TV set, screen color may be distorted because of the `magnetic ﬁeld generated by the speaker. If this occurs, place the speaker away from your TV set.Do not let children play with or near the speakers. They could get hurt if the speaker falls. `When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct. ` Keep the subwoofer speaker out of reach of children so as to prevent children from `inserting their hands or alien substances into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on `a wall through the duct (hole).* To connect the rear speakers, refer to page 24.HDMI INAUDIOSubwooferCenter SpeakerFront Speaker (R)Front Speaker (L)SpeakerStandSubwooferCenter Speaker Front Speaker (L)Front Speaker (R)HT-Z520HDMI INAUDIOHT-TZ522/TZ525

24connectionsCONNECTING THE REAR SPEAKERS TO THE WIRELESS RECEIVING AMPLIFIER Wireless Receiving Module (SWA-4100) HDMI INAUDIOFront Speaker (R)Rear Speaker (L)SubwooferCenter SpeakerRear Speaker (R)WIRELESS RECEIVER MODULEFront Speaker (L)HT-Z520/TZ522HDMI INAUDIOFront Speaker (R)Rear Speaker (L)SubwooferCenter SpeakerRear Speaker (R)WIRELESS RECEIVER MODULEFront Speaker (L)HDMI INAUDIOHT-TZ525HT-Z520 HT-TZ522/TZ525

25ENG ● CONNECTIONSCONNECTING THE REAR SPEAKERS TO THE WIRELESS RECEIVING AMPLIFIER (CON'T) Connect the front, center and Subwoofer speakers to the 1. DVD Player, referring to page 21.With the DVD Player turned off, insert the TX card into the 2. TX Card Connection(Wireless) on the back of the main unit.Hold the TX card so that the slanted side faces to the left •and insert the card into the port. The TX card enables communication between the main •unit and the wireless receiver. Connect the left and right rear speakers to the wireless 3. receiving module. Plug the power cord of the wireless receiving module 4. in the wall outlet . HDMI INAUDIOSlanted side face leftTX cardDo not insert any other card except the TX card dedicated to the product. `If a different TX card is used, the product may be damaged or the card may not be removed easily.Do not insert the TX card upside down or in the reverse direction. ` Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned `on may cause a problem.If the TX Card is inserted and wireless receiving module setting is complete, sound is not `output from the Rear Speaker connectors on the main unit. The wireless receiving antenna is built into the wireless receiver module. Keep the unit `away from water and moisture.For optimal listening performance, make sure that the area around the wireless receiver `module location is clear of any obstructions.If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1 `channel or Dolby ProLogic II .In 2-CH mode, no sound will be heard from the wireless rear speakers. ` MPlace the wireless receiver module at the rear of the listening position. If the wireless `receiver module is too close to the main unit, some sound interruption may be heard due to interference.If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, `or any other device that uses the same frequency (5.8GHz) near the system, some sound interruption may be heard due to interference.The transmission distance from the main unit to the wireless receiving module is about 33 `feet (10m), but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.This product(HT-Z520/HT-TZ522/TZ525) is also compatible with the wireless receiver `module SWA-4000.If the main unit doesn't make wireless connection, the system needs ID Setting between `main unit and wireless receiver module. With the main unit turned off, press remote control's number button "0""1""3""5" and unit turned on. With the wireless receiver module turned on, press "ID SET" button on the back of the unit for 5 seconds.

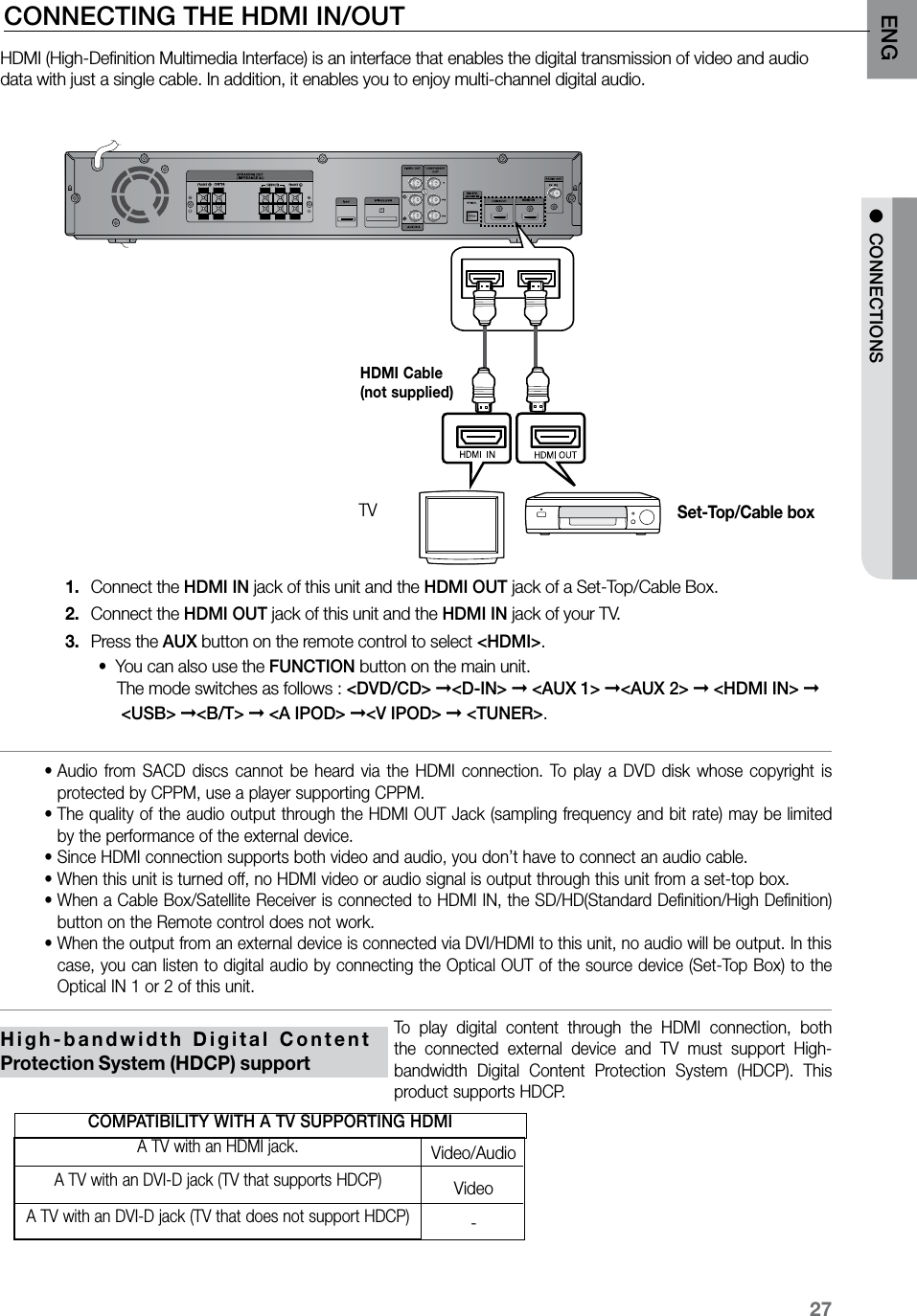

27ENG ● CONNECTIONSHDMI INTo play digital content through the HDMI connection, both the connected external device and TV must support High-bandwidth Digital Content Protection System (HDCP). This product supports HDCP.Set-Top/Cable boxTVHDMI (High-Deﬁnition Multimedia Interface) is an interface that enables the digital transmission of video and audio data with just a single cable. In addition, it enables you to enjoy multi-channel digital audio.CONNECTING THE HDMI IN/OUT• Audio from SACD discs cannot be heard via the HDMI connection. To play a DVD disk whose copyright is protected by CPPM, use a player supporting CPPM.• The quality of the audio output through the HDMI OUT Jack (sampling frequency and bit rate) may be limited by the performance of the external device.• Since HDMI connection supports both video and audio, you don’t have to connect an audio cable.• When this unit is turned off, no HDMI video or audio signal is output through this unit from a set-top box.• When a Cable Box/Satellite Receiver is connected to HDMI IN, the SD/HD(Standard Definition/High Definition) button on the Remote control does not work.• When the output from an external device is connected via DVI/HDMI to this unit, no audio will be output. In this case, you can listen to digital audio by connecting the Optical OUT of the source device (Set-Top Box) to the Optical IN 1 or 2 of this unit.Connect the 1. HDMI IN jack of this unit and the HDMI OUT jack of a Set-Top/Cable Box.Connect the 2. HDMI OUT jack of this unit and the HDMI IN jack of your TV.Press the 3. AUX button on the remote control to select <HDMI>. • You can also use the FUNCTION button on the main unit. The mode switches as follows : <DVD/CD> ➞<D-IN> ➞ <AUX 1> ➞<AUX 2> ➞ <HDMI IN> ➞ <USB> ➞<B/T> ➞ <A IPOD> ➞<V IPOD> ➞ <TUNER>. High-bandwidth Digital Content Protection System (HDCP) supportHDMI Cable(not supplied)A TV with an HDMI jack.A TV with an DVI-D jack (TV that supports HDCP)A TV with an DVI-D jack (TV that does not support HDCP)COMPATIBILITY WITH A TV SUPPORTING HDMIVideo/AudioVideo-

29ENG ● CONNECTIONSBD Wise (only Samsung products)You can select to use the BD Wise menu only if the BD player is connected to a Samsung TV that supports BD Wise using the HDMI cable.What is BD Wise?•BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them.This feature is enabled only if BD Wise-compliant Samsung TVs are connected with each other using the HDMI cable.To use BD Wise•Use the HDMI cable to connect the Bdplayer to a BD Wise-compliant Samsung TV.1. Set each BD Wise menu of the BD player and the Samsung TV to On, respectively.2. - This will optimize the picture quality according to the content (BD, DVD, etc) that you want to play. - This will also optimize the picture quality between BD Wise- compliant Samsung TVs. MIf you want to change the resolution in BD Wise mode, you must set BD mode to Off in advance. `If you set off the BD Wise mode, the resolution of the connected TV will be adjusted to its `maximum automatically.BD Wise will be disabled if the player is connected to a device that does not support BD Wise. `For a proper operaiotn of BD Wise, set each BD Wise menu of the player and the TV to On, `respecitively.
